Additional information

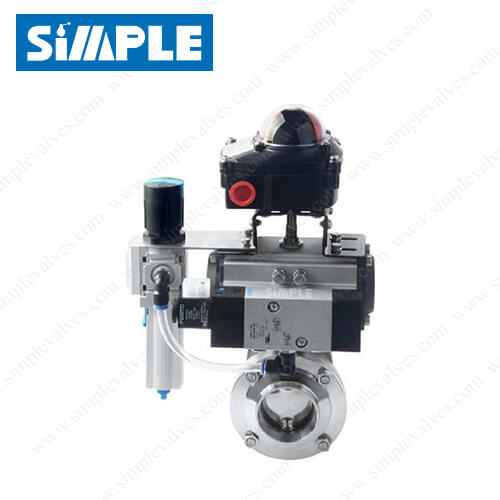

| Reference | SV-1PC-H-SLR |
|---|---|
| Size | 1/2" to 12" (DN10-DN300) |
| End Connection | Butt-weld, Tri-clamp, Thread, Flange, I-line, KF, etc. |
| Body Material | AISI 304, AISI 304L, AISI 316, AISI 316L |
| Seat Material | NBR, EPDM, VMQ (Silicone) or Viton (FKM), FDA approved. |
| Max. Working Pressure | 145psi (10bar) |
| Working Temperature Range | -22°F to 248°F (-30°C to 120°C), or higher available upon request. |
| Operation | pneumatic rack and pinion actuator, NC/NO/AA. |
| Actuator accessories | NAMUR solenoid, limit switch box, air filter regulator |
| Surface Finish | Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default. |
