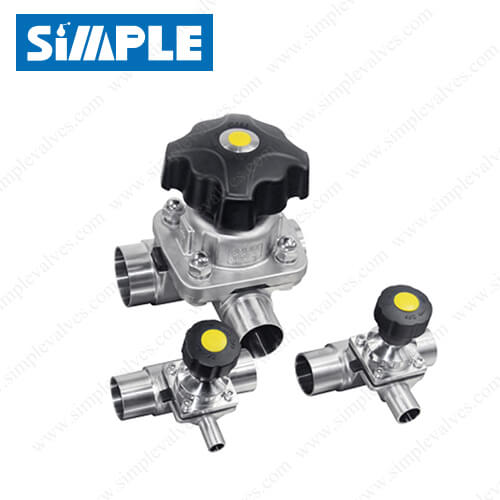

3 Way Sanitary Diaphragm Valves

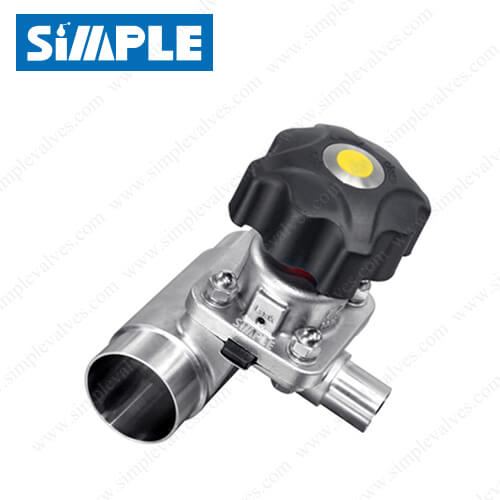

3 Way Sanitary Diaphragm Valve with Tri-clamp Ends, T Body

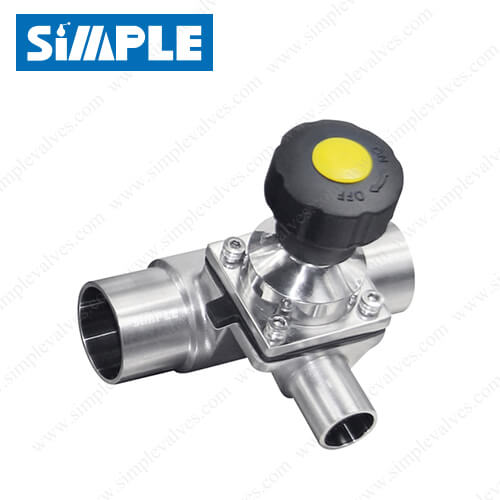

3 Way Sanitary Diaphragm Valves, T Type

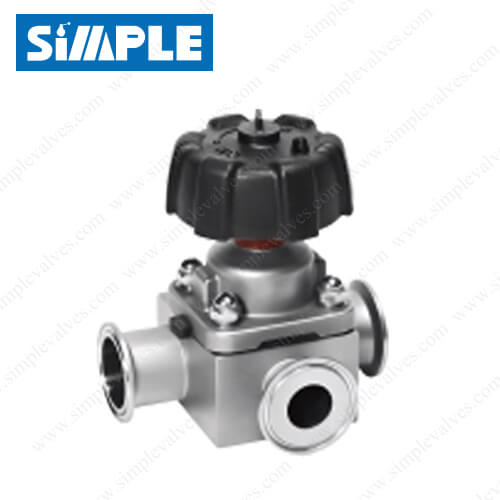

3 Way Sanitary Diaphragm Valve with Tri-clamp Ends

3 Way Sanitary Diaphragm Valve with Tri-clamp Ends, T Body Design

SV-4MC-3T series is a manual type 3 way sanitary diaphragm valve with a T-port body design. The valve is widely used in food, beverage, dairy, brewing, pharmaceutical industries, etc. It is excellent for flow control as well as for open/close duties. The valve can be operated manually or automatically.

Category:

Additional information

Reference

SV-4MC-3TC
Size

1/2" to 4" (DN10 – DN100)
End Connection

Tri-clamp, Butt-weld
Body Material

ASTM A351 CF3M (1.4435) as default, AISI 316L Forged Body (1.4435), ASME BPE 316L, or 1.4435-BN2 (316L) Fe＜0.5% Forged Body
Seat Material

EPDM, EPDM+PTFE
Max. Working Pressure

0-145PSI (10BAR)
Working Temperature Range

-22° F to 356 ° F (-30°C to 180°C )
Operation

plastic or stainless handwheel
Surface Finish

Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
