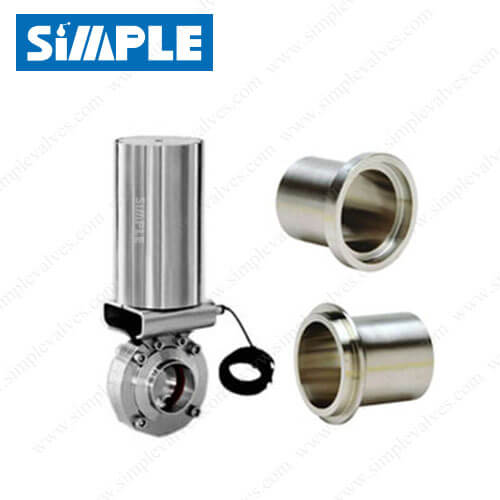

6 Sanitary Butterfly Valve with I-Line Ends, Pneumatic Type

Sanitary Butterfly Valve with I-line Ends, Pneumatic Type

SV-1PI series is a pneumatic type sanitary butterfly valve with I-line/I-line ends, which is widely used in process piping systems for isolation and control. SV-1PI butterfly valve operates automatically.

Category:

Additional information

Reference

SV-1PI
Size

1" to 6" (DN25 – DN150)
End Connection

I-LINE / I-LINE (14WI-CB or 15WI-CB)
Body Material

AISI 304, AISI 304L, AISI 316, AISI 316L
Seat Material

EPDM, SILICONE, VTION (FKM)
Max. Working Pressure

0-145PSI (10BAR)
Working Temperature Range

-22°F to 248°F (-30°C to 120°C), or higher available upon request.
Operation

pneumatic actuator, 304SS, vertical type, NC/NO/AA options.
Surface Finish

Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
