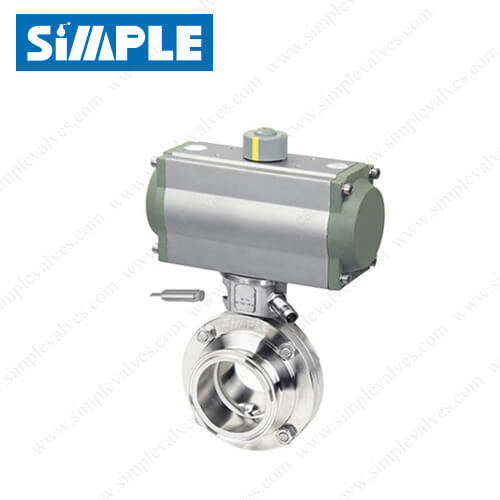

Air Actuated Sanitary Butterfly Valve with Horizontal Actuator + Proximity Switches

Air Actuated Sanitary Butterfly Valve with Horizontal Actuator + Proximity Switches

SV-1PC-H-PS series is an Air Actuated Sanitary Butterfly Valve with Horizontal Actuator and Proximity Switches (Sensors), it can be with (1) or (2) proximity switches to sense valve open or/and close positions.

Proximity sensors detect the presence of objects without physical contact, typical applications include the detection, position, inspection and counting on automated machines and manufacturing systems. They are also used in the following machinery: packaging, production, printing, plastic molding, metal working, food processing, etc.

Category:

Additional information

Reference

SV-1PC-H-PS
Size

1/2" to 12" (DN10-DN300)
End Connection

Butt-weld, Tri-clamp, Thread, Flange, I-line, KF, etc.
Body Material

AISI 304, AISI 304L, AISI 316, AISI 316L
Seat Material

NBR, EPDM, VMQ (Silicone) or Viton (FKM), FDA approved.
Max. Working Pressure

145psi (10bar)
Working Temperature Range

-4°F to 356°F (-20℃ to 180°C)
Operation

aluminum pneumatic actuator, horizontal type, NC/NO/AA.
Proximity Switches

PNP or NPN, detect the presence of objects without physical contact, sense valve OPEN/CLOSE position
Surface Finish

Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
