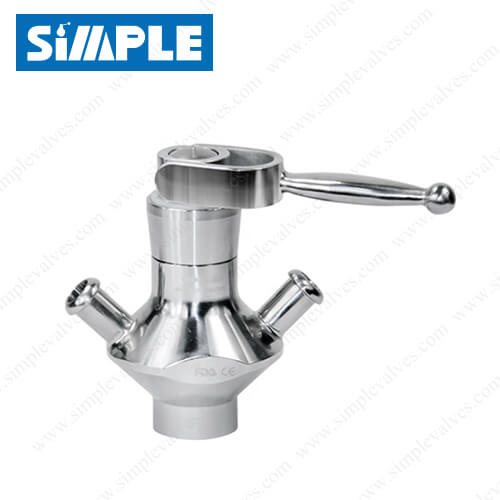

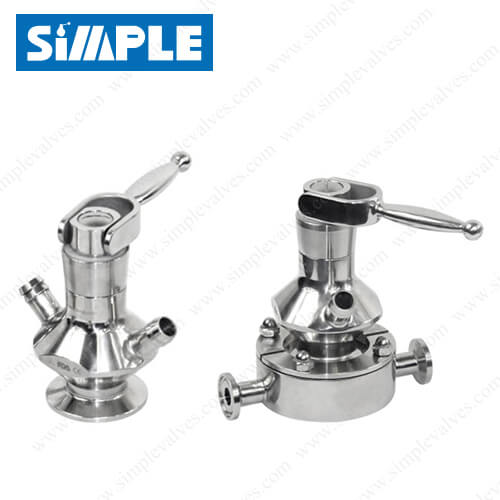

Aseptic Sampling Valve with Removable Handle

SV-7RH series is an aseptic sampling valve with a removable key handle, it is designed for sterilization before and after sampling.

Additional information

Reference	SV-7RH
Size	1/2", 1" (DN15, DN25)
End Connection	butt-welded, tri-clamp, threaded, tank connector, multi-channel pipeline connector
Body Material	AISI 304, AISI 316L
Seat Material	EPDM, SILICONE
Max. Working Pressure	0-145PSI (10BAR)
Working Temperature Range	-22°F to 248°F (-30°C to 120°C), or higher available upon request.
Operation	removable handle
Surface Finish	Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
