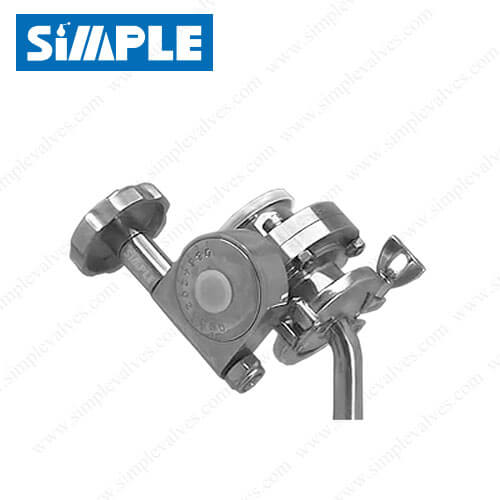

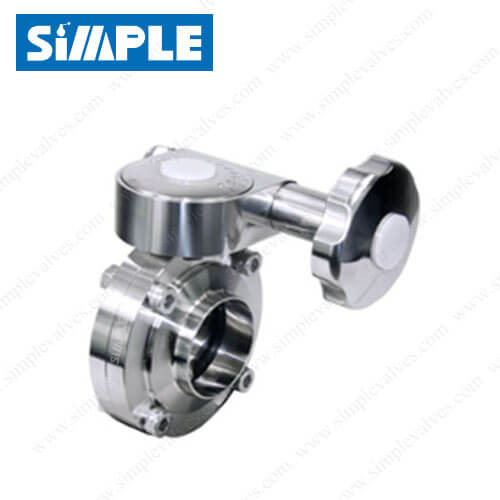

Clamp Butterfly Valve with Fine Tuning Handwheel, Sanitary Design

Sanitary Clamp Butterfly Valve with Fine Tuning Handwheel, Fine Adjustable

SV-1M-FT series is a sanitary butterfly valve with a fine-tuning handwheel, it has the below features:

● Fine adjustable handwheel design, locked in virtually any position.
● Flexible flow control
● Valve position feedback by the visible scale

Additional information

Reference	SV-1M-FT
Size	1/2" to 4" (DN10 – DN100)
End Connection	Butt-weld, Tri-clamp, Thread, Flange, I-line, KF, etc.
Body Material	AISI 304, AISI 304L, AISI 316, AISI 316L
Seat Material	NBR, EPDM, VMQ (Silicone) or Viton (FKM), FDA approved.
Max. Working Pressure	145psi (10bar)
Working Temperature Range	-4°F to 356°F (-20℃ to 180°C)
Operation	Fine Tuning Handwheel, locked in virtually any position.
Surface Finish	Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
