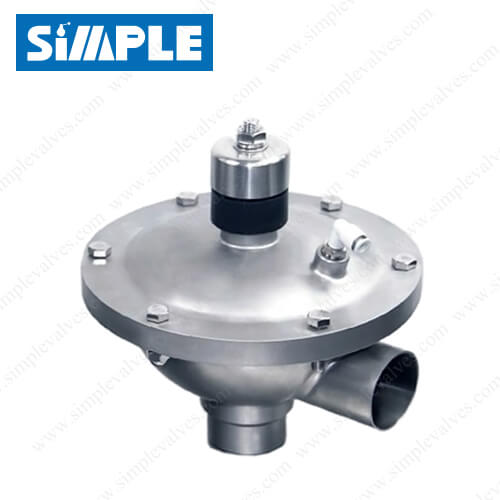

Sanitary Constant Pressure Modulating Valve, Butt-weld
Sanitary Mini Constant Pressure Modulating Valve, Tri-clamp Ends

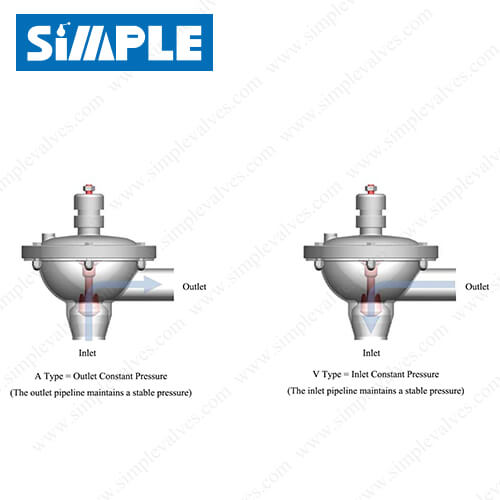

Sanitary Constant Pressure Valve, A Type vs V Type

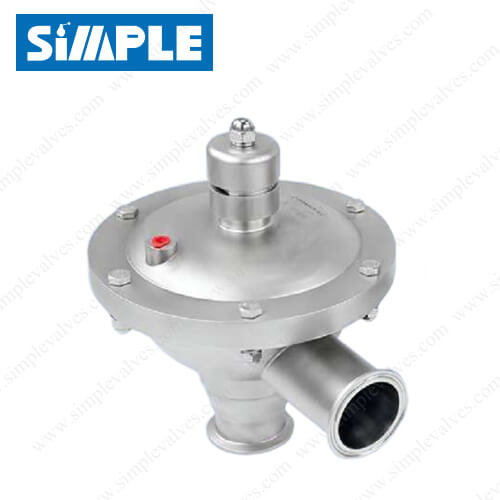

Sanitary Constant Pressure Modulating Valve, Inlet or Outlet Constant

SIMPLE SV-8 series sanitary constant pressure modulating valve can ensure a stable pressure at outlet or inlet. There are V type (inlet constant pressure) and A type (outlet constant pressure) to choose from.

Category:

Additional information

Reference

SV-8
Size

1"-2 1/2" (DN25-DN65)
End Connection

Butt-welded, Tri-clamp, Threaded, Flanged
Body Material

AISI 316L
Seat Material

EPDM+PTFE
Max. Working Pressure

116 psi (8 bar), according to the air supply pressure, 174 psi (12 bar) with Supercharger
Working Temperature Range

14°F to 302°F (-10℃ to 150℃)
Operation

compressed air
Surface Finish

Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
