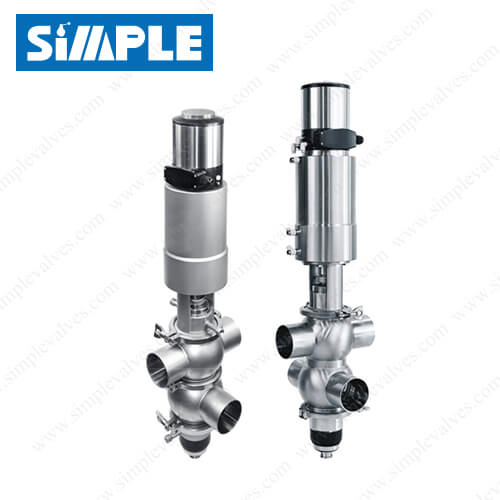

Sanitary Double Seat Mixproof Valve for High Purity Appliction

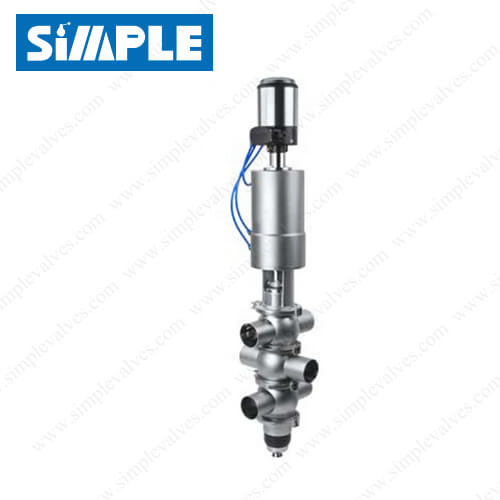

Sanitary Double Seat Mixproof Valve for High Purity Appliction 2

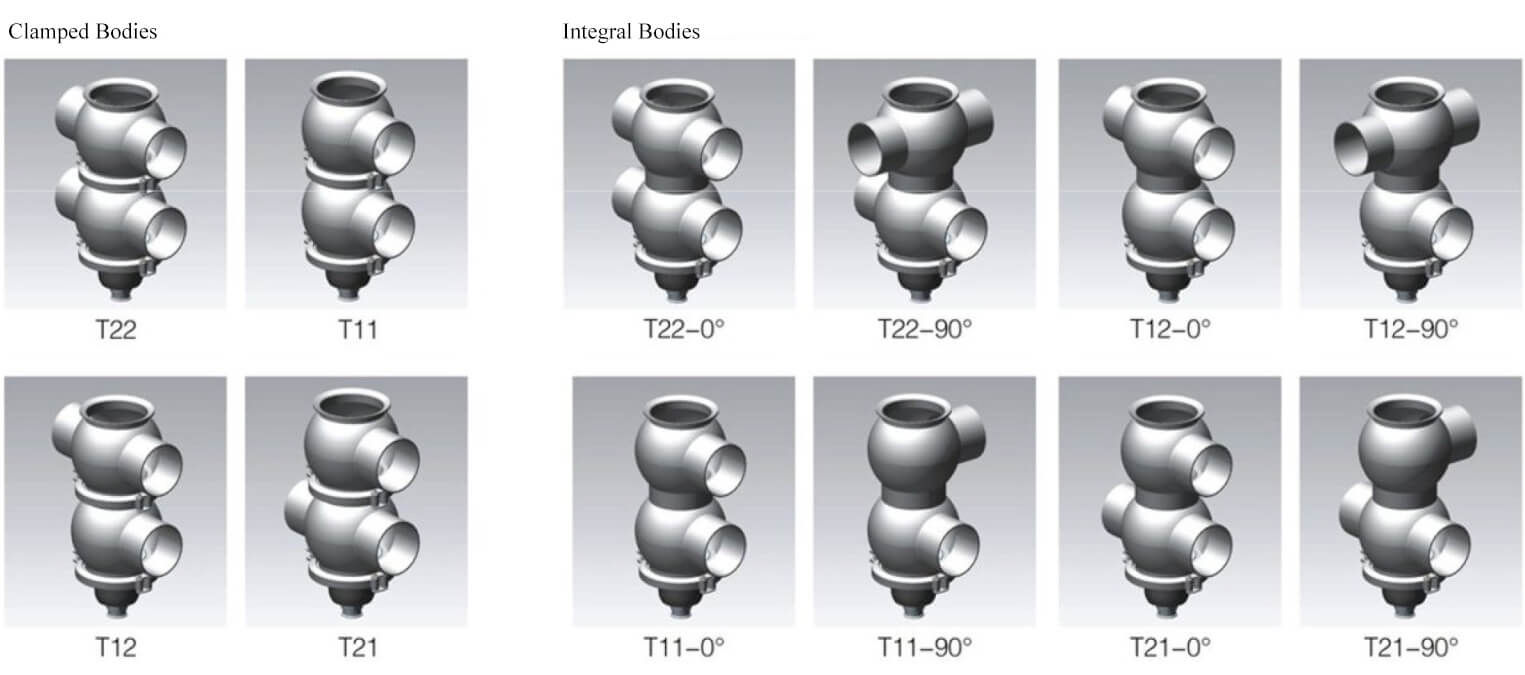

SV-5MPI Sanitary Double Seat Mixproof Valve Body Combinations

Sanitary Double Seat Mixproof Valve for High Purity Appliction

SV-5MP-I series is a completely hygienic double sealing mix-proof valve. This system allows for the simultaneous processes in the two bodies of the valve by providing an interface between the two fluids, preventing the possibility of product contamination, the leakage chamber and leakage detector can be self-cleaned through seat lifting. The mixproof valve is applied to food-processing industries, especially in the beverage and dairy industries.

Category:

Additional information

Reference

SV-5MPI
Size

1 1/2" to 4" (DN40-DN100)
End Connection

Tri-clamp, Butt-weld
Body Material

AISI 304, AISI 304L, AISI 316, AISI 316L
Seat Material

EPDM, VITON (FKM)
Max. Working Pressure

0-145PSI (10BAR)
Working Temperature Range

-22° F to 356 ° F (-30°C to 180°C )
Operation

pneumatic actuator
Control Options

Proximity Switch, Solenoid, Limit Switch Box, F-TOP, C-TOP, IL-TOP positioner.
Surface Finish

Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
