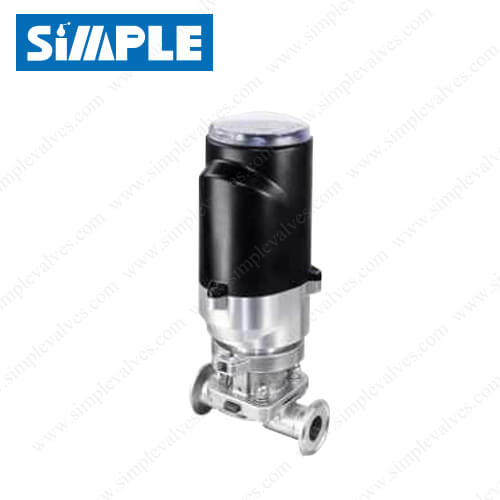

Sanitary Electric Diaphragm Valve with Tri-clamp Ends, Automatic Return

Sanitary Electric Diaphragm Valve with Tri-clamp Ends, Automatic Return

SV-4EC series is a sanitary electric diaphragm valve with tri-clamp connections. The valve is excellent for flow control as well as for open/close duties. It is mainly used for sampling, biological systems, laboratory engineering, etc. SV-4EC operates automatically via an electric actuator.

Category:

Additional information

Reference

SV-4EC
Size

1" to 4" (DN25 – DN100)
End Connection

Tri-clamp, Butt-weld
Body Material

ASTM A351 CF3M (1.4435) as default, AISI 316L Forged Body (1.4435), ASME BPE 316L, or 1.4435-BN2 (316L) Fe＜0.5% Forged Body
Seat Material

EPDM+PTFE
Max. Working Pressure

0-145PSI (10BAR)
Working Temperature Range

-22° F to 356 ° F (-30°C to 180°C )
Operation

electric actuator
Surface Finish

Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
