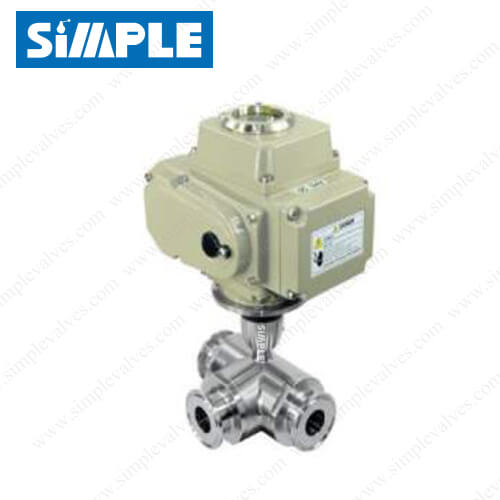

Food Grade Ball Valve with Electric Actuator, 3-way Design, 110-220VAC/24VDC

SV-2EDC-3 series is an electric type sanitary 3-way ball valve with tri-clamp / tri-clamp ends, it is extensively used in food & beverage processing, brewing, oil refinery, cosmetic, pharmaceutical, and chemical industries to control medium flow. The full port design with zero restriction makes it an optimum choice for viscous and particulate liquids, SV-2EDC-3 ball valve operates automatically by an electric actuator.

Categories: ,

Additional information

Reference

SV-2EDC-3
Size

1/2" to 4" (DN10 – DN100)
End Connection

Butt-weld, Tri-clamp, Thread, Flange, I-line, KF, etc.
Body Material

AISI 304, AISI 304L, AISI 316, AISI 316L
Seat Material

TEFLON (PTFE)
Max. Working Pressure

145psi (10bar)
Working Temperature Range

-4°F to 356°F (-20℃ to 180°C)
Operation

Electric Actuator, 110/220VAC, 24VDC
3-way Body Types

T-port or L-port, Flow Plan D/E/F/G/A
Surface Finish

Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
