Food Grade Butterfly Valves with Pneumatic Vertical Actuator, Sandwich Design

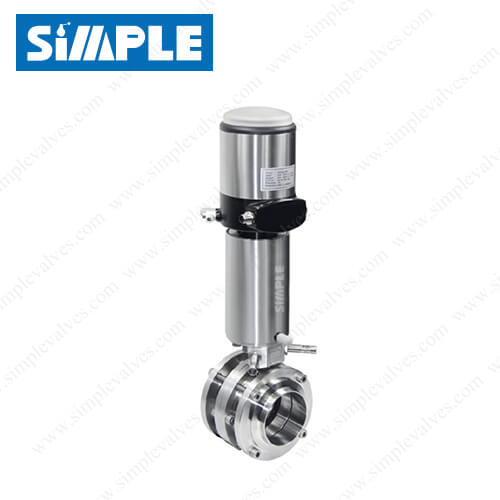

Food Grade Butterfly Valves with Pneumatic Vertical Actuator and EP Positioner

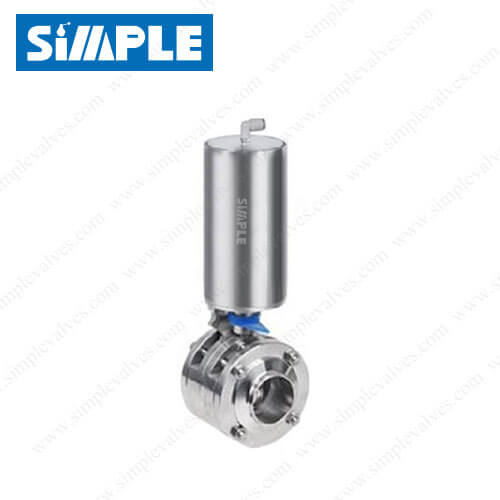

Food Grade Butterfly Valves with Pneumatic Vertical Actuator, Sandwich Design

SV-1SWPW-V series is a pneumatic sanitary sandwich food grade butterfly valve with a vertical actuator, it is widely used in most liquid product applications in the food-processing, pharmaceutical and chemical industries. SV-1SWPW-V butterfly valve operates automatically by a vertical actuator, the sandwich design allows to easily install or remove the valve without separating the pipes.

Category:

Additional information

Reference

SV-1SWPW-V
Size

1/2" to 12" (DN10-DN300)
End Connection

Butt-weld / Butt-weld
Body Material

AISI 304, AISI 304L, AISI 316, AISI 316L
Seat Material

NBR, EPDM, VMQ (Silicone) or Viton (FKM), FDA approved.
Max. Working Pressure

145psi (10bar)
Working Temperature Range

-4°F to 356°F (-20℃ to 180°C)
Operation

pneumatic actuator, 304SS, vertical type, NC/NO/AA options.
Surface Finish

Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
