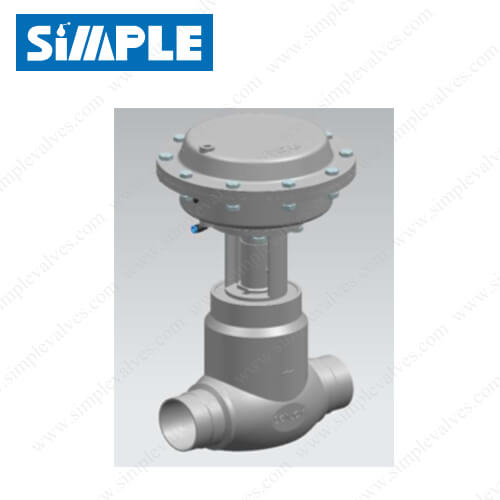

Sanitary Globe Valve with Diaphragm Actuator
Sanitary Globe Valve with Diaphragm Actuator for High Pressure Application

Sanitary Globe Valve with Diaphragm Actuator for High Pressure Application

SV-6PC-D series is a sanitary globe valve with a diaphragm actuator. It is widely used as a switch in the automatic control system for printing, dyeing, bleaching, food-processing, washing, chemical, water treatment, pharmaceutical industries, etc. It featured with water- hammer protection, noise-free, reliable sealing performance characteristics.

Category:

Additional information

Reference

SV-6PC-D
Size

1/2" – 3" (DN10-DN65)
End Connection

Butt-welded, Tri-clamp, Threaded, Flanged
Body Material

AISI 304, AISI 304L, AISI 316, AISI 316L
Seat Material

TEFLON (PTFE)
Max. Working Pressure

0-145PSI (10BAR)
Working Temperature Range

-22° F to 356 ° F (-30°C to 180°C )
Operation

diaphragm Actuator, lower height actuator can withstand higher pressure, it is ideal for valves to avoid water-hammer.
Surface Finish

Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
