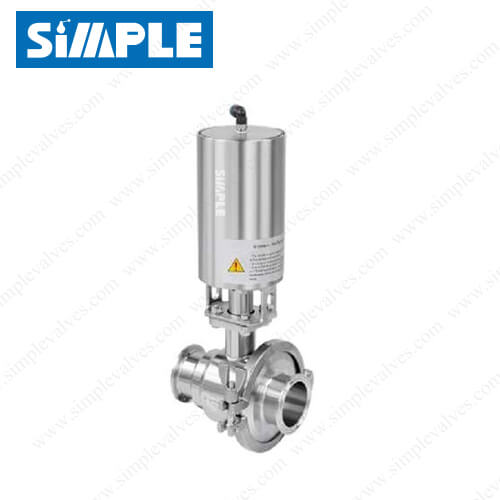

Hygienic Ball Valves with Tri-clamp Ends, Pneumatic Type, Vertical Actuator

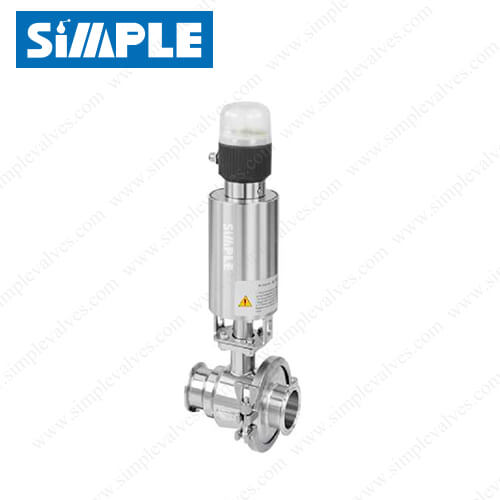

Pneumatic sanitary cavity filled ball valve with position feedback device

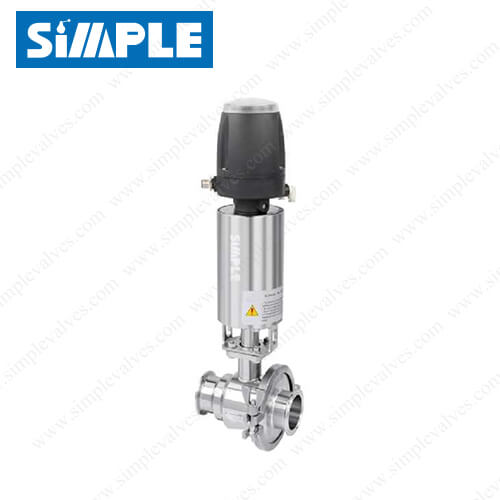

Pneumatic sanitary cavity filled ball valve with MINI C-TOP

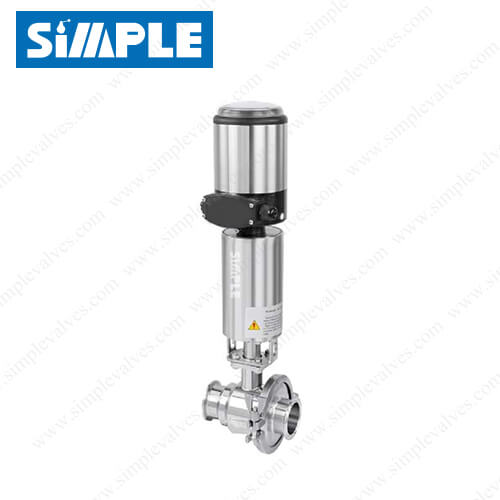

Pneumatic sanitary cavity filled ball valve with IL-TOP positioner

Hygienic Ball Valves with Tri-clamp Ends, Pneumatic Type, Vertical Actuator

SV-2PCC-V series are of hygienic ball valves with vertical pneumatic actuators. The valve body with a unique cavity-filled design prevents the medium from retaining inside after medium flow. SV-2PCC-V series ball valves operate automatically.

Categories: ,

Additional information

Reference

SV-2PCC-V
Size

1/2" to 4" (DN10 – DN100)
End Connection

Tri-clamp / Tri-clamp
Body Material

AISI 304, AISI 304L, AISI 316, AISI 316L
Seat Material

Cavity Filled Teflon (PTFE) + EPDM/Silicone/Viton (FKM) o-ring.
Max. Working Pressure

145psi (10bar)
Working Temperature Range

-22°F to 248°F (-30°C to 120°C), or higher available upon request.
Operation

pneumatic actuator, 304SS, vertical type, NC/NO/AA options.
Control Options

Proximity Switch, Solenoid, Limit Switch Box, F-TOP, C-TOP, IL-TOP positioner.
Surface Finish

Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
