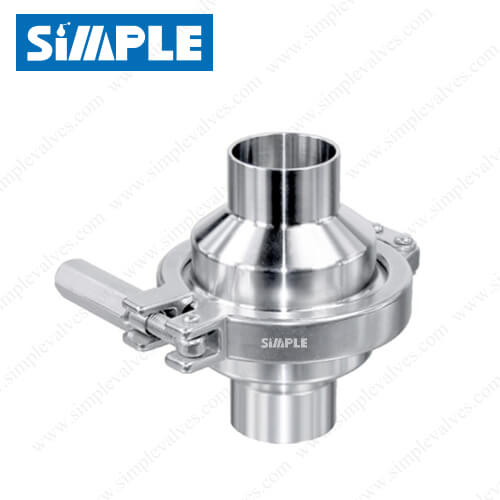

Hygienic Check Valve with Butt-weld Ends, Spring Check Valve

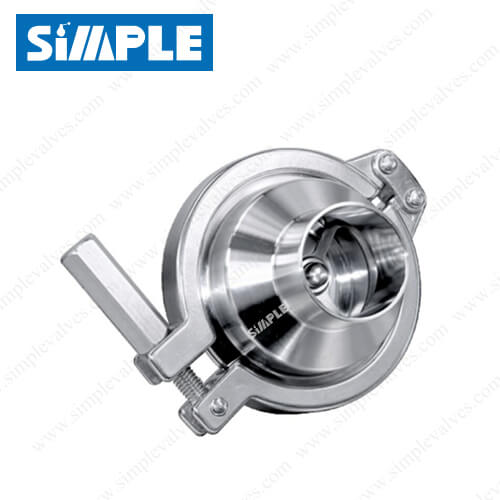

Hygienic Check Valve with Butt-weld Ends, Spring Check Valve 2

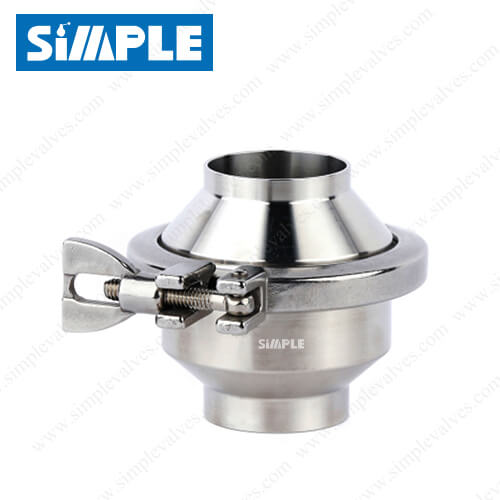

Sanitary Check Valve with Butt-weld Ends

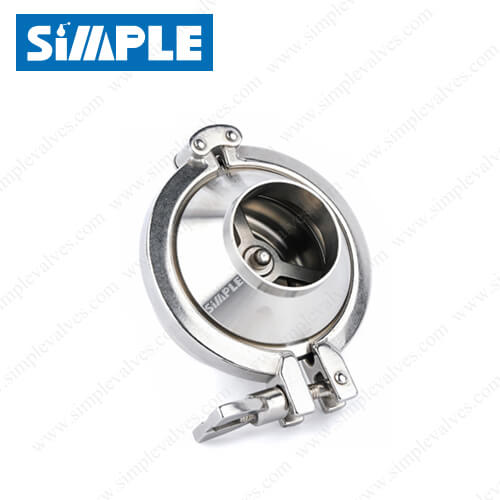

Sanitary Check Valve with Butt-weld Ends 2

Hygienic Check Valve with Butt-weld Ends, Spring Check Valve

SV-3W series hygienic check valve is a spring-loaded check valve with butt-weld ends, it is designed for use in process piping installations to prevent reverse flow.

Category:

Additional information

Reference

SV-3W
Size

1/2" to 4" (DN10 – DN100)
End Connection

Butt-weld / Butt-weld
Body Material

AISI 304, AISI 304L, AISI 316, AISI 316L
Seat Material

EPDM, SILICONE, VTION (FKM)
Cracking Pressure Range

4.5psi (0.3bar) to 1.5psi (0.1bar)
Max. Working Pressure

145psi (10bar)
Working Temperature Range

-22°F to 248°F (-30°C to 120°C), or higher available upon request.
Surface Finish

Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
