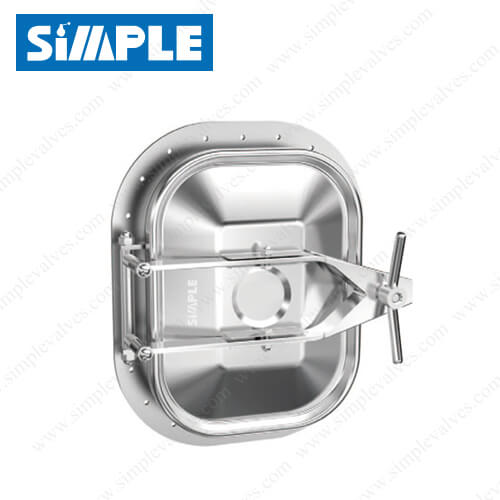

Hygienic Manhole Door with Back-side opening SMRT-48

Hygienic Manhole Door with Back-side opening SMRT-48

SMRD-48 series is a rectangular Hygienic Manhole Door with a Back-side Opening, used in botting and washing machines and industries where removal of pulp from the bottom of a tank must be done occasionally, like wine and juice industries. They are designed to fit where a closeable means of access to the interior of the vessel, situated above or below the liquid level, is required.

Opening the cover by loosening the handle. This range includes covers with various openings.

Categories: ,

Additional information

Reference

SMRT-48
Size

17"x13" (435x335mm), 21"x16" (535x415mm), 28"x20" (700x500mm)
Body Material

AISI 304 (1.4301), AISI 316L (1.4404)
Gaskets Material

Silicone (white), EPDM (black), Viton (FKM, black)
Max. Working Pressure

1.45-10.2psi (0.1-0.7bar)
Working Temperature Range

EPDM -4°F to 248°F (-20°C to 120°C)
Open

Outward
Cover thickness

2.0mm, 2.5mm, 3.0mm
Frame/Neck height

2.75" (70mm), 4" (100mm), 5" (120mm), or upon request.
Surface Finish

Ra 32-16μin (0.8μm-0.4μm). Bead blasted, acid pickled, or electro polished available upon request.
