Additional information

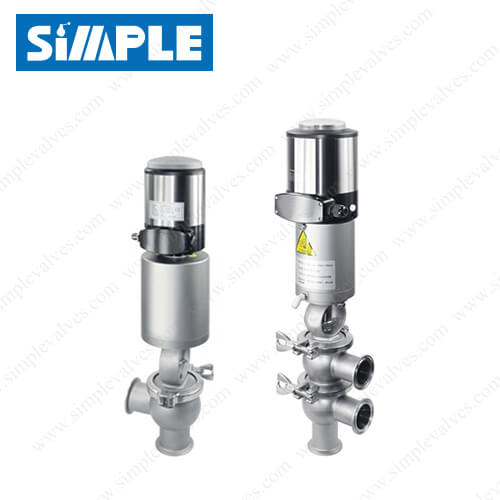

| Reference | SV-5DSPC-IL |
|---|---|
| Size | 1" to 4" (DN25 – DN100) |
| End Connection | Tri-clamp, Butt-weld |
| Body Material | AISI 304, AISI 304L, AISI 316, AISI 316L |
| Seat Material | EPDM, TEFLON (PTFE), VITON (FKM) |
| Max. Working Pressure | 0-145PSI (10BAR) |
| Working Temperature Range | -22° F to 356 ° F (-30°C to 180°C ) |
| Operation | pneumatic actuator, 304SS, vertical type, NC/NO/AA options. |

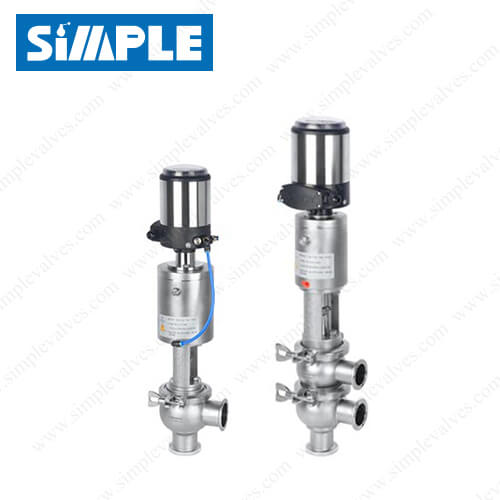

| IL-TOP Control Module | locating valve position by setting a value, valve position accurate control, 4-20mA input signal and 4-20mA output feedback. |
| Surface Finish | Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default. |
