Additional information

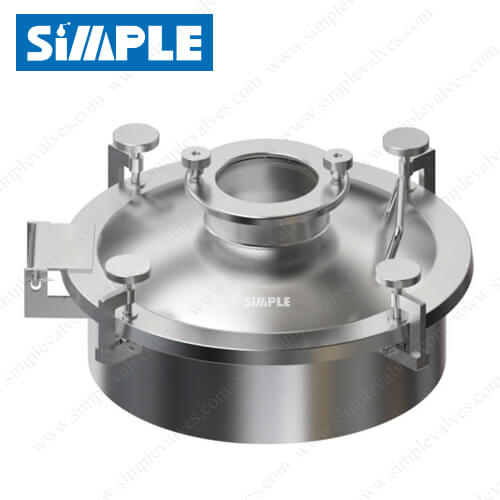

| Reference | SMRD-24 |
|---|---|
| Size | 8" (200mm), 12" (300mm), 14" (350mm), 16" (400mm), 17" (430mm), 18" (450mm), 20" (500mm), 24" (600mm) |
| Body Material | AISI 304 (1.4301), AISI 316L (1.4404) |
| Gaskets Material | Silicone (white), EPDM (black), Viton (FKM, black) |
| Max. Working Pressure | 0-101.5psi (0-7bar) |
| Working Temperature Range | EPDM -4°F to 248°F (-20°C to 120°C) |
| Open | Outward |
| Cover thickness | 3.0mm, 3.5mm, 4.0mm |
| Frame/Neck height | 3.35" (85mm), 4" (100mm), 5" (120mm), 6" (150mm), 8" (200mm), 10" (250mm), or upon request. |
| Surface Finish | Ra 32-16μin (0.8μm-0.4μm). Bead blasted, acid pickled, or electro polished available upon request. |
