Sanitary Manual Angle Seat Valve, Plastic or Stainless Handwheel

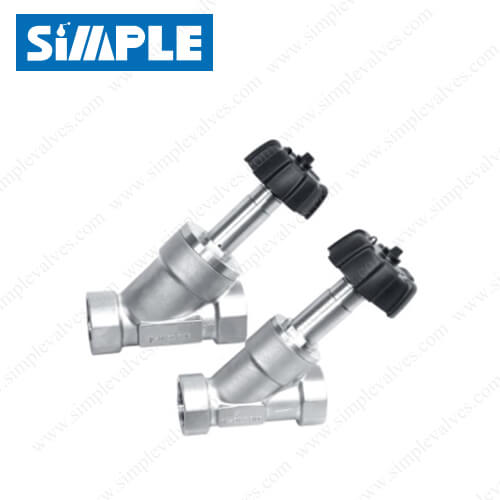

Sanitary Manual Angle Seat Valve with Plastic Handwheel

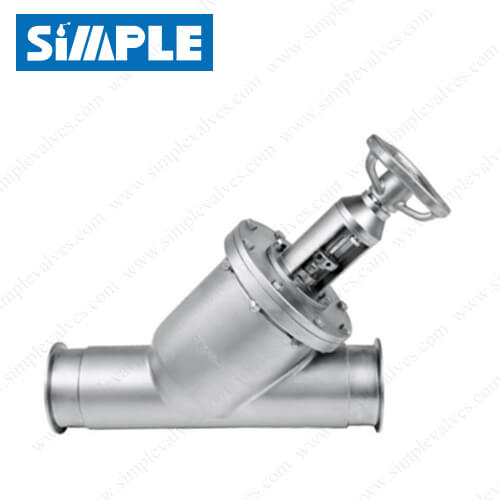

Sanitary Manual Angle Seat Valve

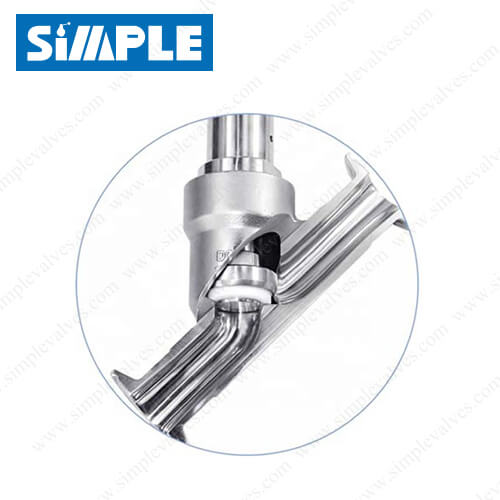

Angle Seat Valve Section View

Sanitary Manual Angle Seat Valve, Plastic or Stainless Handwheel

SV-5ASMC series is a sanitary manual angle seat valve with a plastic or stainless steel handwheel. It is widely used as a switch in the automatic control system for printing, dyeing, bleaching, food-processing, washing, chemical, water treatment, pharmaceutical industries. It featured with water- hammer protection, noise-free, reliable sealing performance characteristics.

Category:

Additional information

Reference

SV-5ASMC
Size

1/2" – 3" (DN10-DN65)
End Connection

Butt-welded, Tri-clamp, Threaded, Flanged
Body Material

AISI 304, AISI 304L, AISI 316, AISI 316L
Seat Material

TEFLON (PTFE)
Max. Working Pressure

0-145PSI (10BAR)
Working Temperature Range

-22° F to 356 ° F (-30°C to 180°C )
Operation

plastic or stainless handwheel
Surface Finish

Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
