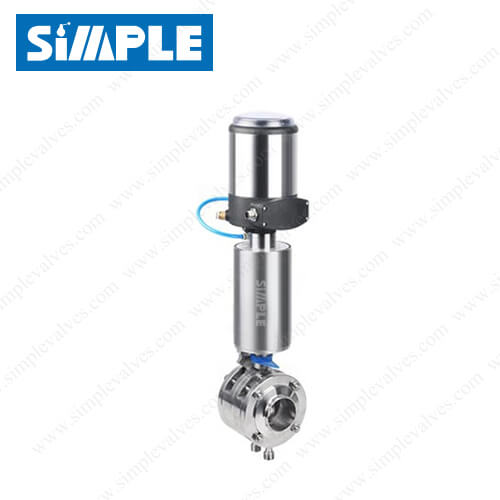

Pharmaceutical butterfly valves with Leakage Paths, Pneumatic Operated

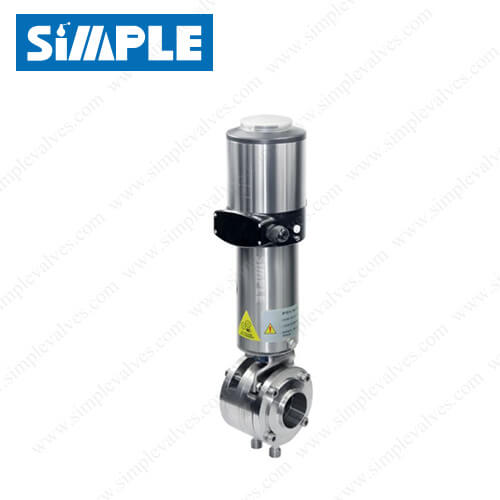

Pharmaceutical butterfly valves with Leakage Paths, Pneumatic Operated with IL-TOP

Pharmaceutical butterfly valves with Leakage Paths, Pneumatic Operated

SV-1MPAPW series is a pneumatically operated pharmaceutical butterfly valve with a single-seat design. As a processing element for the separation of media, it is widely used in a variety of applications. SV-1MPAMW butterfly valve operates manually.

The A-type Sanitary Mix-proof Butterfly Valve is with one disc and two leakage paths. The leakage paths can be cleaned/flushed When necessary. The two cleaning connections can be integrated into the CIP circuit, it can be cleaned when the valve is closed.

Pneumatic actuator with IL-TOP available for intelligent control. The IL-TOP ( E/P Positioner) control module can be locating valve position by setting a value, 4-20mA input signal and the 4-20mA output feedback.

Category:

Additional information

Reference

SV-1MPAPW
Size

2"-4" (DN50-DN100)
End Connection

Butt-weld, Tri-clamp, Thread, Flange, I-line, KF, etc.
Body Material

AISI 304, AISI 304L, AISI 316, AISI 316L
Seat Material

EPDM, SILICONE, VTION (FKM)
Max. Working Pressure

0-145PSI (10BAR)
Working Temperature Range

-22°F to 248°F (-30°C to 120°C), or higher available upon request.
Operation

pneumatic actuator, 304SS, vertical type, NC/NO/AA options.
Surface Finish

Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
