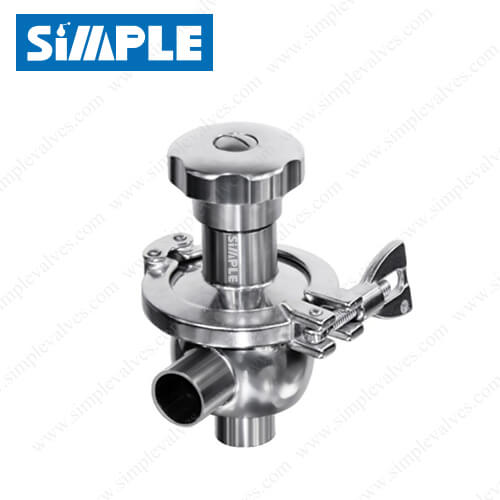

Radial Diaphragm Valve, Aseptic Design, Manual Type

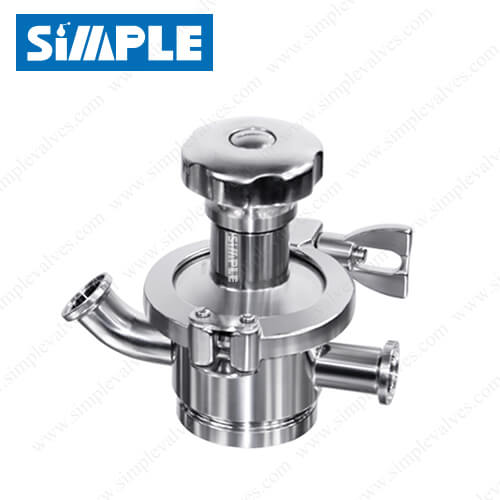

Radial Diaphragm Valve, Aseptic Design

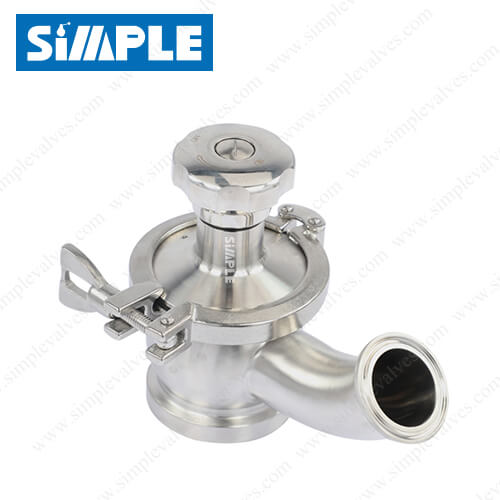

Radial Tank Bottom Diaphragm Valve, Aseptic Design
Radial Diaphragm Valve, Diaphragm Options

Radial Diaphragm Valve, Aseptic Design, Manual Type, SS Handwheel

SV-4RMC series is a manual type radial diaphragm valve for aseptic processing. No dead legs design makes it an optimum choice for biotechnology and the pharmaceutical industry.

Category:

Additional information

Reference

SV-4RMC
Size

3/4" to 2 1/2"
End Connection

Tri-clamp, Butt-weld
Body Material

ASTM A351 CF3M (1.4435) as default, AISI 316L Forged Body (1.4435), ASME BPE 316L, or 1.4435-BN2 (316L) Fe＜0.5% Forged Body
Seat Material

EPDM, EPDM+PTFE
Max. Working Pressure

0-145PSI (10BAR)
Working Temperature Range

-22° F to 356 ° F (-30°C to 180°C )
Operation

plastic or stainless handwheel
Surface Finish

Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
