Additional information

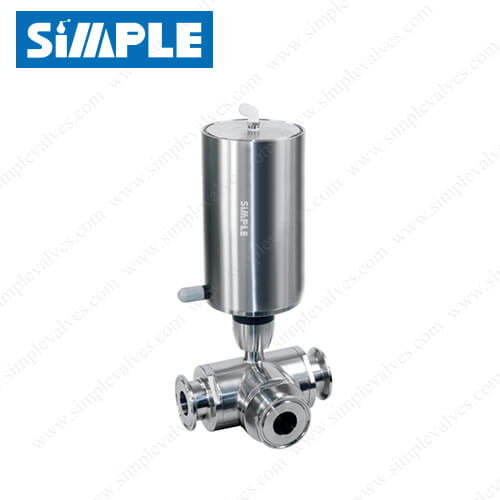

| Reference | SV-2PDC-V-3 |
|---|---|
| Size | 1/2" to 4" (DN10 – DN100) |
| End Connection | Butt-weld, Tri-clamp, Thread, Flange, I-line, KF, etc. |
| Body Material | AISI 304, AISI 304L, AISI 316, AISI 316L |
| Seat Material | TEFLON (PTFE) |
| Max. Working Pressure | 145psi (10bar) |
| Working Temperature Range | -4°F to 356°F (-20℃ to 180°C) |
| Operation | pneumatic actuator, 304SS, vertical type, NC/NO/AA options. |
| Air Supply Pressure | 72-102psi (5-7bar) |

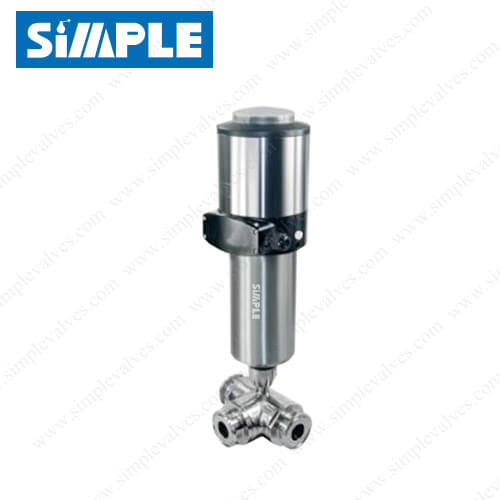

| Control Options | Proximity Switch, Solenoid, Limit Switch Box, F-TOP, C-TOP, IL-TOP positioner. |
| 3-way Body Types | T-port or L-port, Flow Plan D/E/F/G/A |
| Surface Finish | Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default. |
