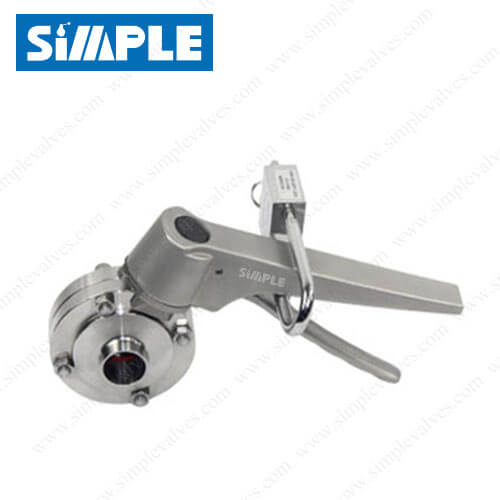

Sanitary Manual Butterfly Valve with Stainless Lockable Handle

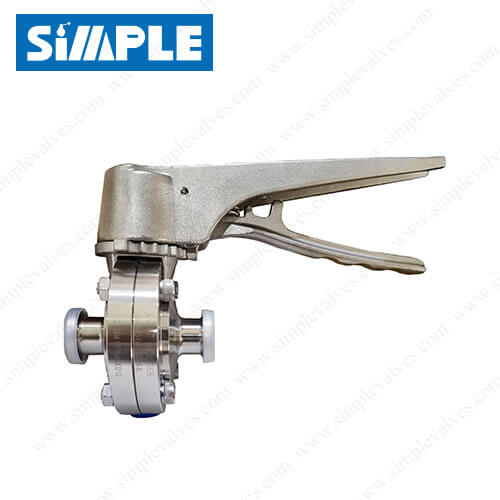

Sanitary Tri-clamp Butterfly Valve with Stainless Lockable Handle

Sanitary Manual Butterfly Valve with Stainless Lockable Handle

SV-1M-LH series is a sanitary manual butterfly valve with a stainless lockable handle, it is widely used in process piping systems for isolation and control. SV-1M-LH butterfly valve operates manually by a multi-position lockable handle.

Category:

Additional information

Reference

SV-1M-LH
Size

1/2" to 4" (DN10 – DN100)
End Connection

Butt-weld, Tri-clamp, Thread, Flange, I-line, KF, etc.
Body Material

AISI 304, AISI 304L, AISI 316, AISI 316L
Seat Material

NBR, EPDM, VMQ (Silicone) or Viton (FKM), FDA approved.
Max. Working Pressure

145psi (10bar)
Working Temperature Range

-4°F to 356°F (-20℃ to 180°C)
Operation

SS lockable handle, multi-position.
Surface Finish

Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
