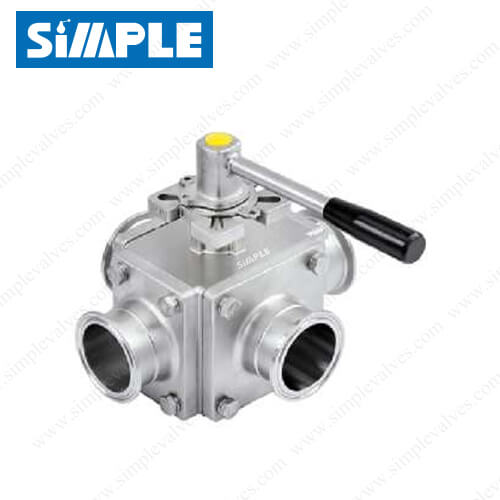

Sanitary Multi Port Ball Valve, 4-way Ball Valve, Manual Type

Sanitary Multi Port Ball Valve, 4-way Ball Valve, Manual Type

SV-2MEC-4 series is a manual type sanitary 4-way ball valve with tri-clamp / tri-clamp ends and Encapsulated PTFE seat, which is extensively used in food & beverage processing, brewing, oil refinery, cosmetic, pharmaceutical, and chemical industries to control medium flow. The Encapsulated PTFE seat design with no residue makes it an optimum choice for sanitary needs, SV-2MEC-4 ball valve operates manually.

Categories: ,

Additional information

Reference

SV-2MEC-4
Size

1" to 4" (DN25 – DN100)
End Connection

Butt-weld, Tri-clamp, Thread, Flange, I-line, KF, etc.
Body Material

AISI 304, AISI 304L, AISI 316, AISI 316L
Seat Material

Encapsulated Teflon (PTFE)
Max. Working Pressure

0-145PSI (10BAR)
Working Temperature Range

-22°F to 248°F (-30°C to 120°C), or higher available upon request.
Operation

Manual Handle
Surface Finish

Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
