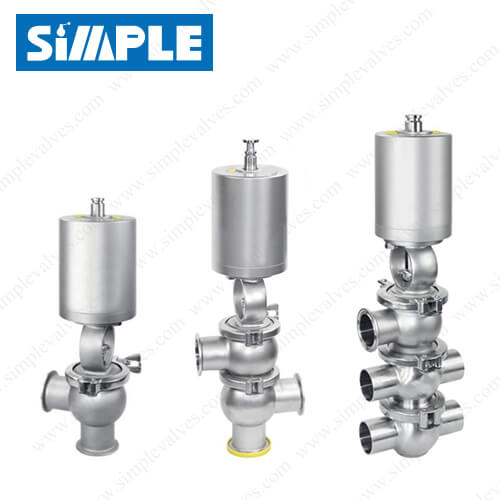

Sanitary Single Seat Valve with Pneumatic Actuator, Flexible Body Combinations

SV-5DSPC series is a pneumatic type Sanitary Single Seat Valve with stainless steel actuator. It is widely used wildly used in food-processing, beverage, pharmaceutical and fine chemicals industries, etc.

Category:

Additional information

Reference

SV-5DSPC
Size

1" to 4" (DN25 – DN100)
End Connection

Tri-clamp, Butt-weld
Body Material

AISI 304, AISI 304L, AISI 316, AISI 316L
Seat Material

EPDM, TEFLON (PTFE), VTION (FKM)
Max. Working Pressure

0-145PSI (10BAR)
Working Temperature Range

-22° F to 356 ° F (-30°C to 180°C )
Operation

pneumatic actuator, 304SS, vertical type, NC/NO/AA options.
Surface Finish

Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
