Sanitary Stainless Steel Valves, Sandwich Design with Pneumatic Horizontal Actuator

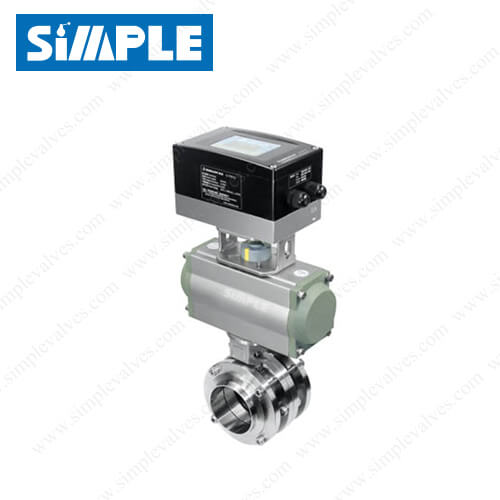

Sanitary Stainless Steel Valves, Sandwich Design with Pneumatic Horizontal Actuator and IL-TOP

Sanitary Stainless Steel Valves, Sandwich Design with Pneumatic Horizontal Actuator

SV-1SWPW-H series is a pneumatic sanitary stainless steel valve with a horizontal actuator, it is widely used in most liquid product applications in the food-processing, pharmaceutical and chemical industries. SV-1SWPW-H butterfly valve operates automatically by a horizontal actuator, the sandwich design allows to easily install or remove the valve without separating the pipes.

Category:

Additional information

Reference

SV-1SWPW-H
Size

1/2" to 12" (DN10-DN300)
End Connection

Butt-weld / Butt-weld
Body Material

AISI 304, AISI 304L, AISI 316, AISI 316L
Seat Material

NBR, EPDM, VMQ (Silicone) or Viton (FKM), FDA approved.
Max. Working Pressure

145psi (10bar)
Working Temperature Range

-22°F to 248°F (-30°C to 120°C), or higher available upon request.
Operation

aluminum pneumatic actuator, horizontal type, NC/NO/AA.
Surface Finish

Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
