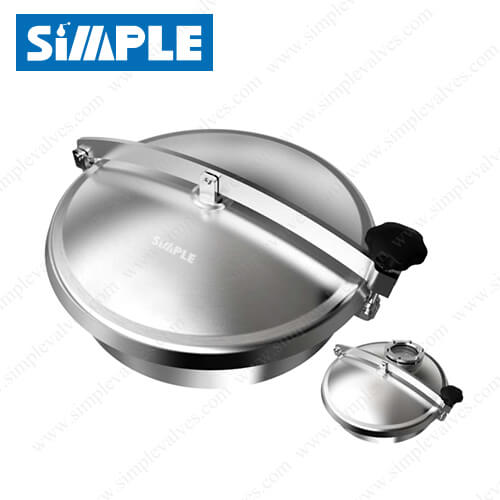

Sanitary Tank Manway, Pressureless Manways SMRD-11

Sanitary Tank Manway, Non-pressure Manways SMRD-11

SMRD-11 series Sanitary Tank Manway applies to all kinds of atmospheric containers or tanks to prevent leakage, it is widely used in food, beverage, brewing and pharmaceutical industries. SMRD-11 is a round-type non-pressure manway with a hinged cross arm and plastic/SS handwheel.

Categories: ,

Additional information

Reference

SMRD-11
Size

8.5" (219mm), 12" (300mm), 16" (400mm), 17" (430mm), 18" (450mm), 20" (500mm), 24" (600mm)
Body Material

AISI 304 (1.4301), AISI 316L (1.4404)
Gaskets Material

Silicone (white), EPDM (black), Viton (FKM, black)
Max. Working Pressure

0-2.9psi (0-0.2bar)
Working Temperature Range

EPDM -4°F to 248°F (-20°C to 120°C)
Open

Outward
Cover thickness

2.0mm, 2.5mm, 3.0mm.
Frame/Neck height

3.35" (85mm), 4" (100mm), 5" (120mm), 6" (150mm), 8" (200mm), 10" (250mm), or upon request.
Surface Finish

Ra 32-16μin (0.8μm-0.4μm). Bead blasted, acid pickled, or electro polished available upon request.
