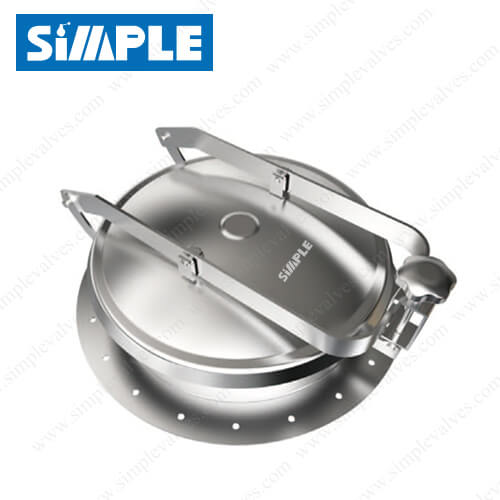

Sanitary Tank Manway Lids with Back-side opening SMRD-44

Sanitary Tank Manway Lids with Back-side Opening SMRD-44

SMRD-44 series Sanitary Tank Manway Lids apply to all kinds of atmospheric containers or tanks to prevent leakage, it is widely used in food, beverage, brewing and pharmaceutical industries. SMRD-44 is a round-type non-pressure manway with a back-side opening.

Categories: ,

Additional information

Reference

SMRD-13
Size

8.5" (219mm), 12" (300mm), 16" (400mm), 17" (430mm), 18" (450mm), 20" (500mm), 24" (600mm)
Body Material

AISI 304 (1.4301), AISI 316L (1.4404)
Gaskets Material

Silicone (white), EPDM (black), Viton (FKM, black)
Max. Working Pressure

0-2.9psi (0-0.2bar)
Working Temperature Range

EPDM -4°F to 248°F (-20°C to 120°C)
Open

Outward
Cover thickness

2.0mm, 2.5mm, 3.0mm.
Frame/Neck height

3.35" (85mm), 4" (100mm), 5" (120mm), 6" (150mm), 8" (200mm), 10" (250mm), or upon request.
Surface Finish

Ra 32-16μin (0.8μm-0.4μm). Bead blasted, acid pickled, or electro polished available upon request.
