Additional information

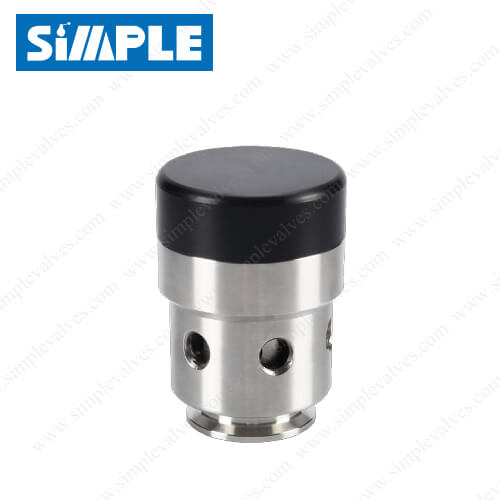

| Reference | SV-9C |
|---|---|
| Size | 1", 1.5", 2" (DN25-DN50) |
| End Connection | Tri-clamp, Butt-weld |
| Body Material | AISI 304, AISI 316L |
| Seat Material | EPDM, silicone or Viton (FPM) |
| Max. Working Pressure | Negative pressure (vacuum): 4.35-13psi (0.3-0.9 bar), 13psi (0.9bar) as default., Positive pressure: 7.3-29psi (0.5-2 bar), 14.5psi (1bar) as default. |
| Pressure Adjustable | screw clockwise or anti-clockwise to increase or decrease pressure |
| Working Temperature Range | -22°F to 248°F (-30°C to 120°C), or higher available upon request. |
| Surface Finish | Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default. |
