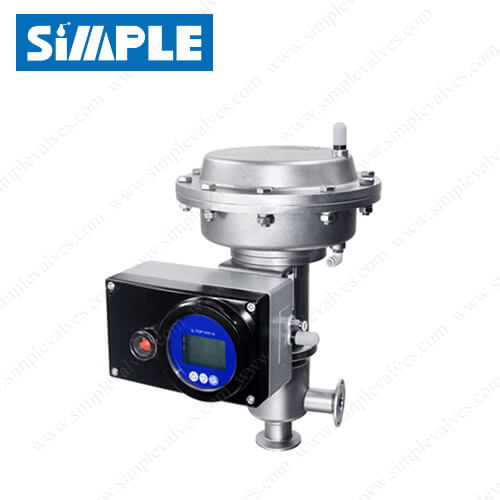

Sanitary Single Seated Control Valve with Diaphragm Actuator and EP Positioner

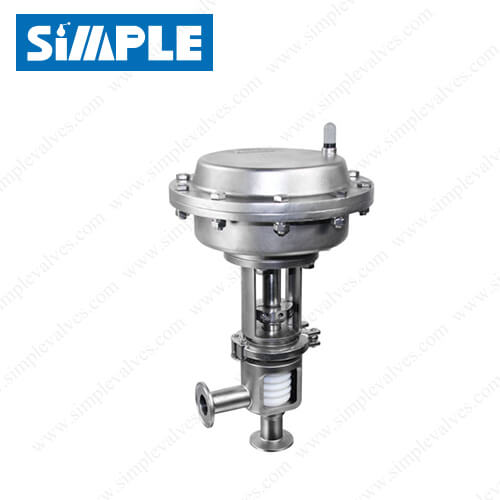

Sanitary Mini Diverter Valve with Diaphragm Actuator

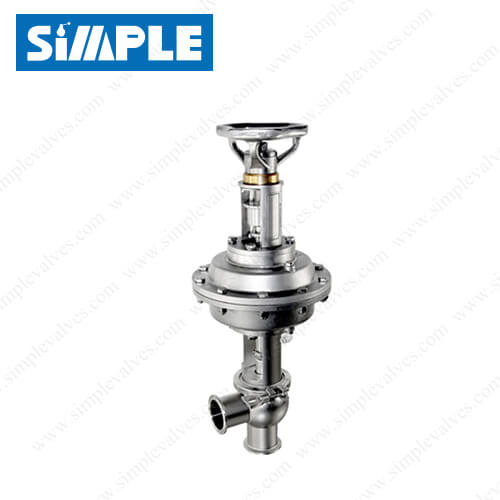

Sanitary Diverter Valve, Manual and Pneumatic in One

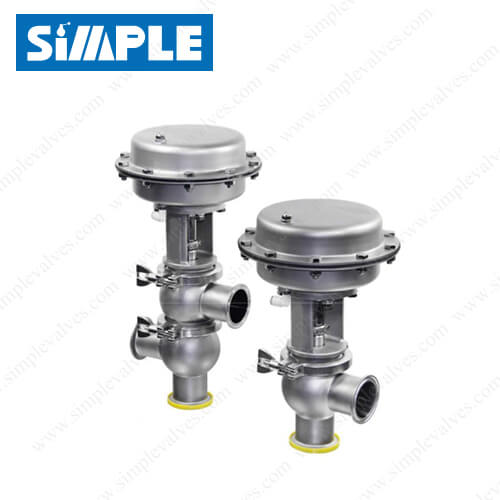

Sanitary Single Seated Control Valve with Diaphragm Actuator, High Pressure Application

SV-5DSPC-DA series is a pneumatic type sanitary single seated control valve with Diaphragm Actuator. A lower height actuator can withstand higher pressure, it is ideal for valves to avoid water-hammer, it is widely used wildly used in food-processing, beverage, pharmaceutical and fine chemicals industries, etc.

Category:

Additional information

Reference

SV-5DSPC-DA
Size

1" to 4" (DN25 – DN100)
End Connection

Tri-clamp, Butt-weld
Body Material

AISI 304, AISI 304L, AISI 316, AISI 316L
Seat Material

EPDM, TEFLON (PTFE), VITON (FKM)
Max. Working Pressure

0-145PSI (10BAR)
Working Temperature Range

-22° F to 356 ° F (-30°C to 180°C )
Operation

diaphragm Actuator, lower height actuator can withstand higher pressure, it is ideal for valves to avoid water-hammer.
Surface Finish

Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
