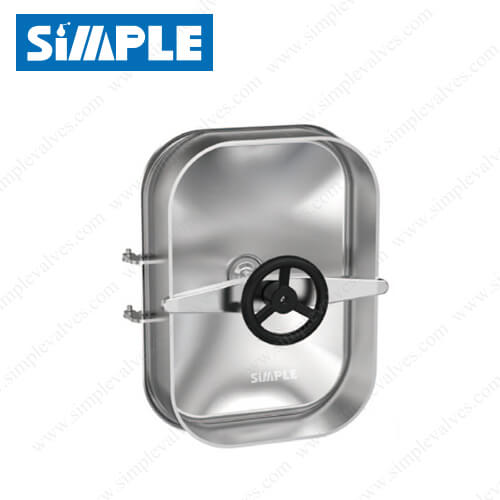

Stainless Steel Manway Cover SMRT-42

Stainless Steel Manway Cover, Opening Inwards SMRT-42

SMRD-42 series is a rectangular Stainless Steel Manway Cover used in botting and washing machines and industries where removal of pulp from the bottom of a tank must be done occasionally, like wine and juice industries. They are designed to fit where a closeable means of access to the interior of the vessel, situated above or below the liquid level, is required.

Categories: ,

Additional information

Reference

SMRT-42
Size

17"x13" (435x335mm), 21"x16" (535x415mm)
Body Material

AISI 304 (1.4301), AISI 316L (1.4404)
Gaskets Material

Silicone (white), EPDM (black), Viton (FKM, black)
Max. Working Pressure

1.45-8.7psi (0.1-0.6bar)
Working Temperature Range

EPDM -4°F to 248°F (-20°C to 120°C)
Open

Inward
Cover thickness

2.0mm, 2.5mm, 3.0mm
Frame/Neck height

2.36" (60mm), 4" (100mm), 5" (120mm), or upon request.
Surface Finish

Ra 32-16μin (0.8μm-0.4μm). Bead blasted, acid pickled, or electro polished available upon request.
