Additional information

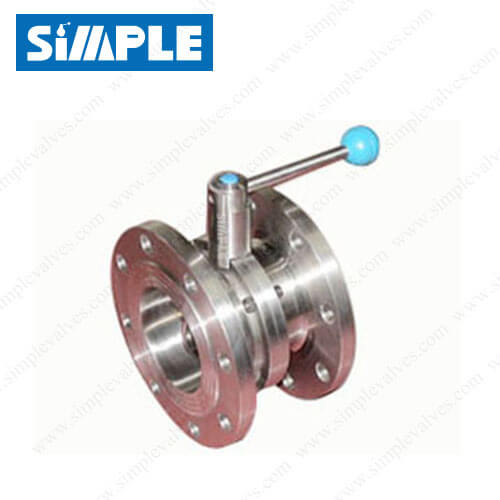

| Reference | SV-1MF |
|---|---|
| Size | 3/4" to 10" (DN15 – DN200) |
| End Connection | Flange / Flange |
| Body Material | AISI 304, AISI 304L, AISI 316, AISI 316L |
| Seat Material | EPDM, SILICONE, VTION (FKM) |
| Max. Working Pressure | 0-145PSI (10BAR) |
| Working Temperature Range | -22°F to 248°F (-30°C to 120°C), or higher available upon request. |
| Operation | 4-position pull handle |
| Surface Finish | Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default. |
