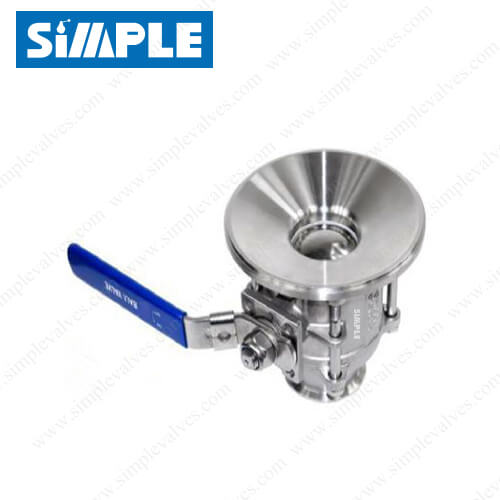

Tank Bottom Ball Valve, Sanitary Design, Manual Type

Tank Bottom Ball Valve, Sanitary Design, Manual Type

SV-2MTBC series is a manual-type tank bottom ball valve. The ball valve is specially designed for pressure vessels and tanks for emptying and draining. Fully PTFE encapsulated ball core and self-sealing compensation design promise high pressure, high-temperature resistance, small torque and long service life. It meets CIP / SIP cleaning and sterilization, ideal for most sanitary systems like biopharmaceutical service, food and beverage, dairy, chemical, etc.

Categories: ,

Additional information

Reference

SV-2MTBC
Size

1.5" to 3" (DN40 to DN80)
End Connection

Butt-weld, Tri-clamp, Thread, Flange, I-line, KF, etc.
Body Material

AISI 304, AISI 304L, AISI 316, AISI 316L
Seat Material

Encapsulated Teflon (PTFE)
Max. Working Pressure

0-145PSI (10BAR)
Working Temperature Range

-22°F to 248°F (-30°C to 120°C), or higher available upon request.
Operation

Manual Handle
Surface Finish

Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
