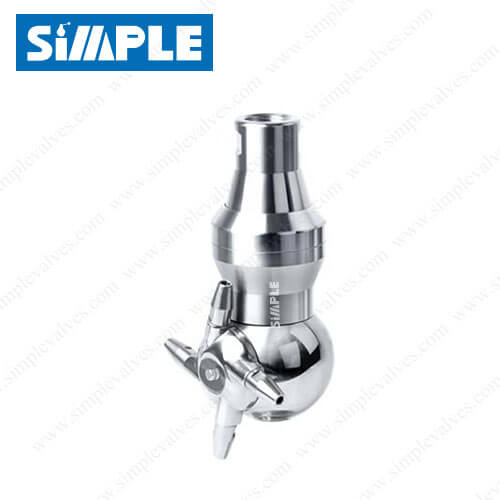

SV-13JH Tank Washing Nozzle

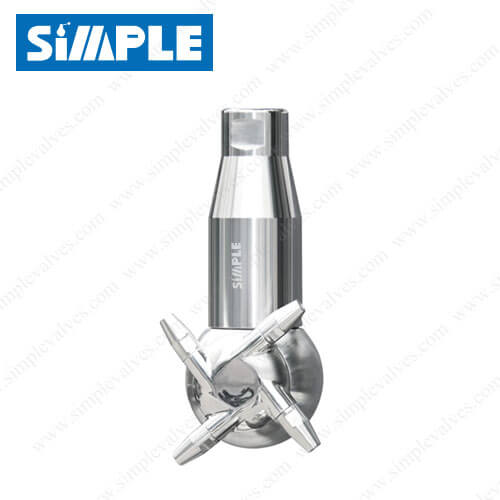

SV-13JH Tank Cleaning Nozzle

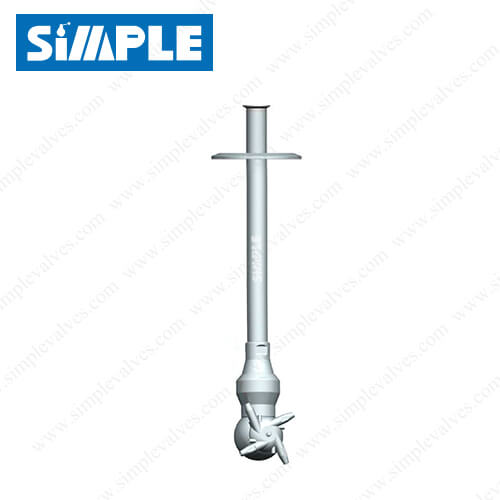

SV-13JHA Sanitary Tank Cleaning Nozzle Assembly, Custom Length

Sanitary Tank Washing Nozzle, 360° Rotary Jet Head

SV-13JH series Tank Washing Nozzle is a hygienic tank cleaner with 360° coverage in a given tank or process container. It is driven by flow liquid through the impeller, increase the pressure and flow will increase the length of the jet and the impact to the tank/vessel wall.

Category:

Additional information

Reference

SV-13JH
Size

1"-1 1/2" (DN25-DN40)
End Connection

Sanitary tri-clamp, Female NPT/BSP threaded, Butt-weld
Body Material

AISI 316L
Seat Material

TEFLON (PTFE)
Inlet Pressure

58-145psi (4-10 bar), suggest pressure 87 psi (6 bar)
Cleaning Radius

max. 72ft (22m)
Flow Rate

max. 70GPM (16m³/h)
Working Temperature Range

14°F ~ 248°F (-10°C ~ 120°C)
Surface Finish

Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
