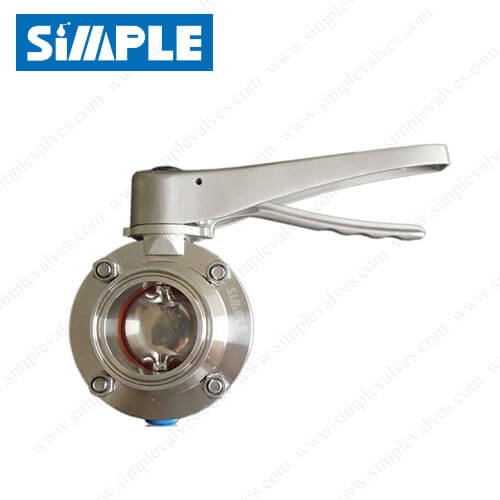

Sanitary Tri Clamp Butterfly Valve with SS Trigger Manual Handle

Sanitary Tri Clamp Butterfly Valve with SS Trigger Manual Handle

SV-1MC-SL series is a manual type sanitary tri-clamp butterfly valve with stainless steel trigger handle, it is widely used in process piping systems for isolation and control. SV-1MC-SL butterfly valve operates manually by SS Trigger Handle (12-position).

Category:

Additional information

Reference

SV-1MC-SL
Size

1/2" to 6" (DN10-DN150)
End Connection

Tri-clamp / Tri-clamp
Body Material

AISI 304, AISI 304L, AISI 316, AISI 316L
Seat Material

NBR, EPDM, VMQ (Silicone) or Viton (FKM), FDA approved.
Max. Working Pressure

145psi (10bar)
Working Temperature Range

-4°F to 356°F (-20℃ to 180°C)
Operation

12-position SS trigger handle
Surface Finish

Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
