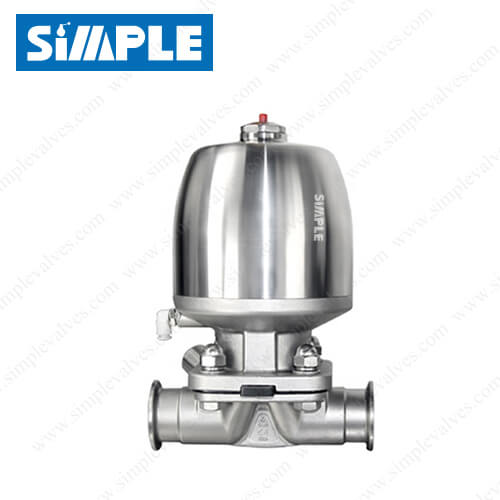

Sanitary Tri Clamp Diaphragm Valve with Pneumatic Actuator

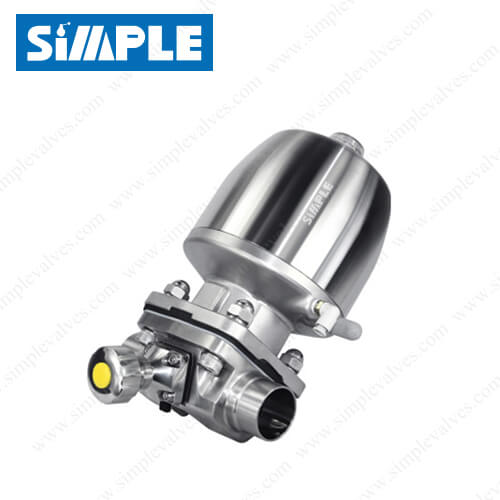

Sanitary Tri Clamp Diaphragm Valve with Pneumatic Actuator and Sampling

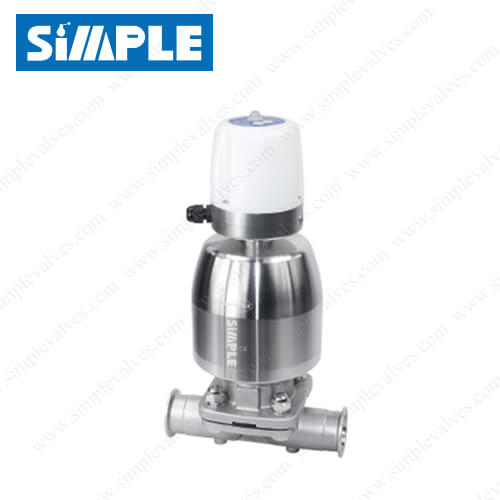

Stainless Steel Sanitary Diaphragm Valve, Pneumatic Type with C-TOP Module
Sanitary Pneumatic Operated Diaphragm Valve with IL-TOP (EP Positioner)

Sanitary Tri Clamp Diaphragm Valve with Pneumatic Actuator, NC/NO/AA Type

SV-4PC series is a sanitary tri clamp diaphragm valve with a pneumatic actuator. The valve is excellent for flow control as well as for open/close duties. It is mainly used for sampling, biological systems, laboratory engineering, etc. SV-4PC diaphragm valve operates pneumatically via plastic or ss actuator.

Category:

Additional information

Reference

SV-4PC
Size

1" to 4" (DN25 – DN100)
End Connection

Tri-clamp, Butt-weld
Body Material

ASTM A351 CF3M (1.4435) as default, AISI 316L Forged Body (1.4435), ASME BPE 316L, or 1.4435-BN2 (316L) Fe＜0.5% Forged Body
Seat Material

EPDM+PTFE
Max. Working Pressure

0-145PSI (10BAR)
Working Temperature Range

-22° F to 356 ° F (-30°C to 180°C )
Operation

stainless pneumatic actuator, NC/NO/AA type for choose from
Surface Finish

Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
