Sanitary Tri Clover Sample Valve for Yogurt

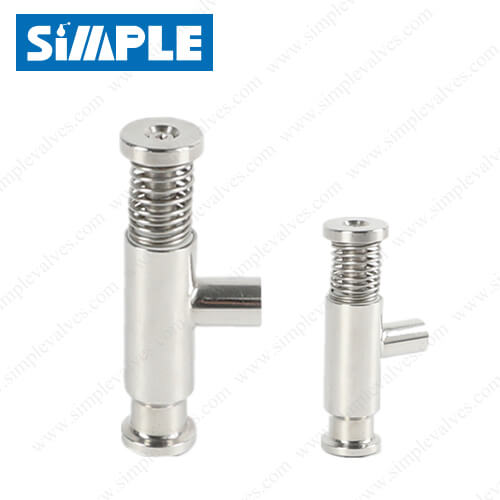

0.5in Sanitary Tri Clover Sample Valve for Yogurt

Sanitary Tri Clover Sample Valve for Yogurt

SV-7Y series sanitary tri-clover sample valve is designed for high viscosity products, like yogurt, etc. The valve opens to the inside of the tank or pipe so that it can avoid opening by accident due to much pressure, it is normally closed (by spring), opened by press the handle, and closed when loosing up.

Category:

Additional information

Reference

SV-7Y
Size

1/2", 1" (DN15, DN25)
End Connection

Tri-clamp, Butt-weld
Body Material

AISI 316L
Seat Material

EPDM
Max. Working Pressure

0-145PSI (10BAR)
Working Temperature Range

-22°F to 248°F (-30°C to 120°C), or higher available upon request.
Operation

spring loaded handle, auto return
Surface Finish

Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
