Additional information

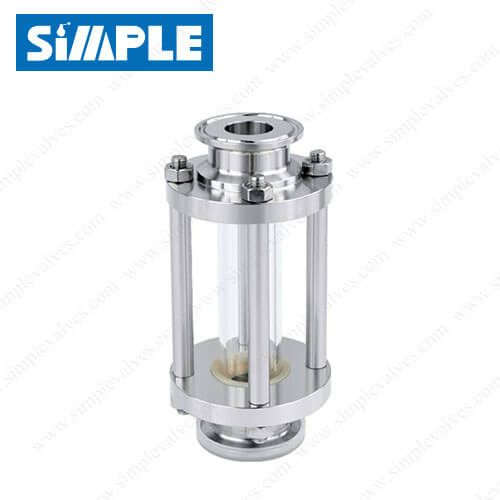

| Reference | SV-12IC |
|---|---|
| Size | 1 1/2" to 4" (DN40-DN100) |
| End Connection | Tri-clamp |
| Body Material | AISI 304, AISI 304L, AISI 316, AISI 316L |
| Seat Material | EPDM, SILICONE, VITON (FKM) |
| Max. Working Pressure | 145psi (10bar) |
| Working Temperature Range | 14°F ~ 248°F (-10°C ~ 120°C) |
| Surface Finish | Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default. |
