Additional information
| Reference | SV-1PB |
|---|---|
| Size | 4" to 12" (DN100 – DN300) |
| End Connection | Flange, Tri-clamp, Butt-weld |
| Body Material | AISI 316L |
| Seat Material | EPDM, SILICONE, VTION (FKM) |
| Max. Working Pressure | 145psi (10bar) |
| Working Temperature Range | -22°F to 248°F (-30°C to 120°C), or higher available upon request. |

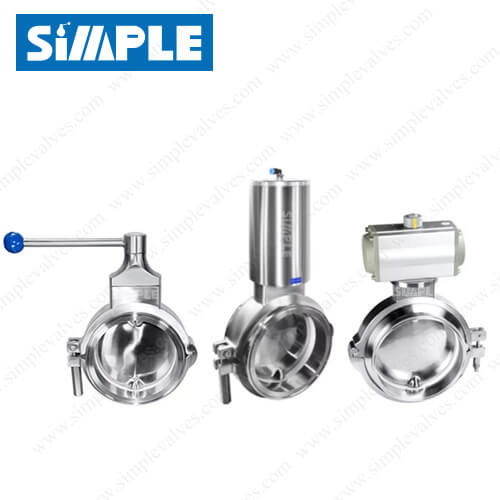

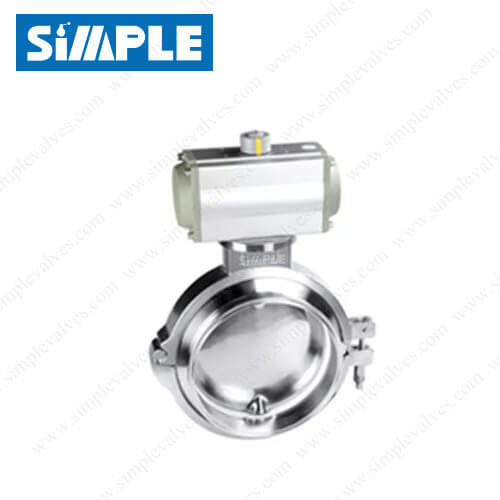

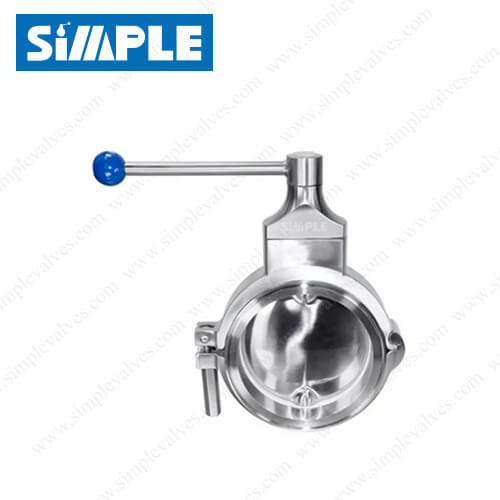

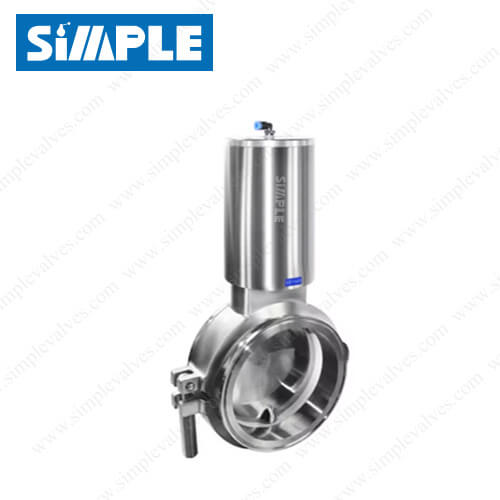

| Operation | Manual Handle, pneumatic actuator |
| Surface Finish | Ra 16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default. |
